Flow Control System

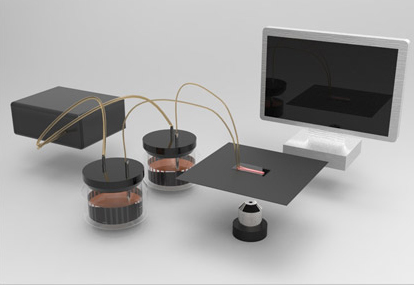

Microfluidic Control System
(미세정량 유체 공급 시스템)

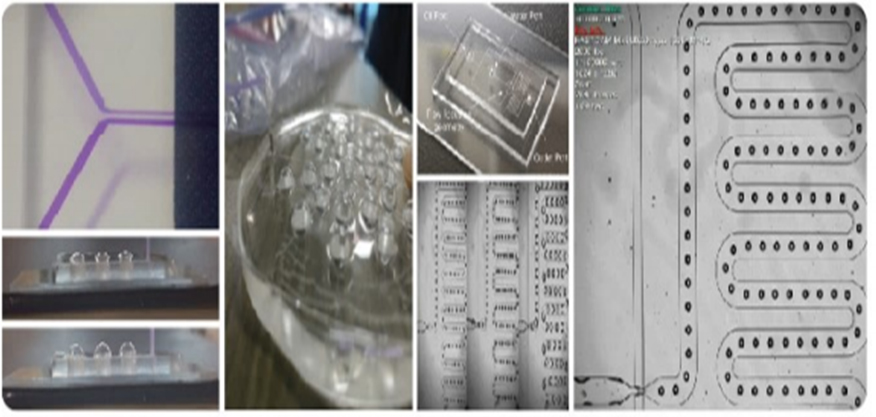

  • Applications
    • Microfluidics
    • Droplet Manipulations
    • Cell & Particles
    • Chemistry
    • General precise flow Control
General Flow control system in microfluidics
  • syringe pump, peristaltic pump, piston pump
  • poor temporal response, instability in fluid delivery
  • limitation for precise multiport fluid injection and periodic flow stoppage

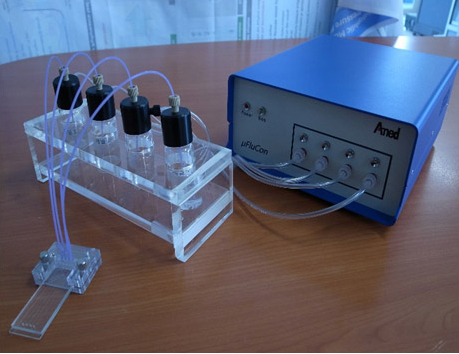

Advantages of AMED-Pressure Driven-Flow Control
  • pulseless flow due to no mechanical part
  • easily multichannel flow control
  • fast response time & scalable digital micro flow
  • Pressure Range: 1-100kPa
  • Pressure resolution: 1kPa
  • Maximal gas flow: 4L/min
  • Number of channels: 4 channels
  • Power: 100-240VAC (50-60Hz)
  • Control: PC based S/W
  • Input pressure: Compressed air (or nitrogen): 200kPa

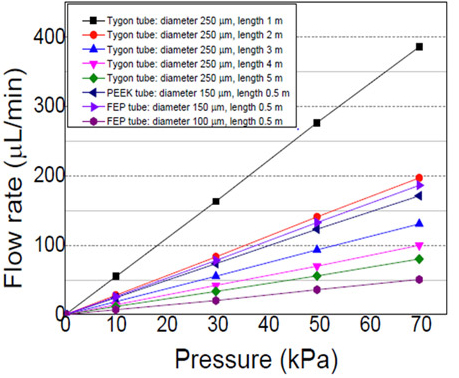

  • Tube: Tygon, PEEK, FEP tube
  • Pressure Gas: N2
  • Input pressure: 200kPa
  • Ambient temperature: 26°C
  • Channel Length: 0.5~5m
